1203BK DC Motor Speed Controller Regulator DC 6V 12V 28V 80W 3A PWM DC Motor Adjustable Speed Control 1203BK Switches Module
1203BK DC Motor Speed Controller Regulator DC 6V 12V 28V 80W 3A PWM DC Motor Adjustable Speed Control 1203BK Switches Module
This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse Width Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
Connect a voltage of 6V-28V DC to the circuit, ensuring the correct polarity of the connection. Note that the voltage applied to the motor will be the supply voltage applied to the circuit. An appropriately rated fuse in line with the positive supply is recommended to protect the circuit from any possible short circuits.
Product Features:
- 1203BK DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM)
- The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
- Control the speed of a DC motor with this controller
- High efficiency, high torque, low heat generating
- With reverse polarity protection, high current protection
Specification:
- Product: PWM DC Motor Speed Controller
- Model: 1203BK
- The maximum output power: 80W
- Input supply voltage: 6V-28V DC
- The maximum continuous output current: 3A
- Material: Plastic / Metal
- Function: Speed Control
- Duty Cycle adjustable:5%-100%

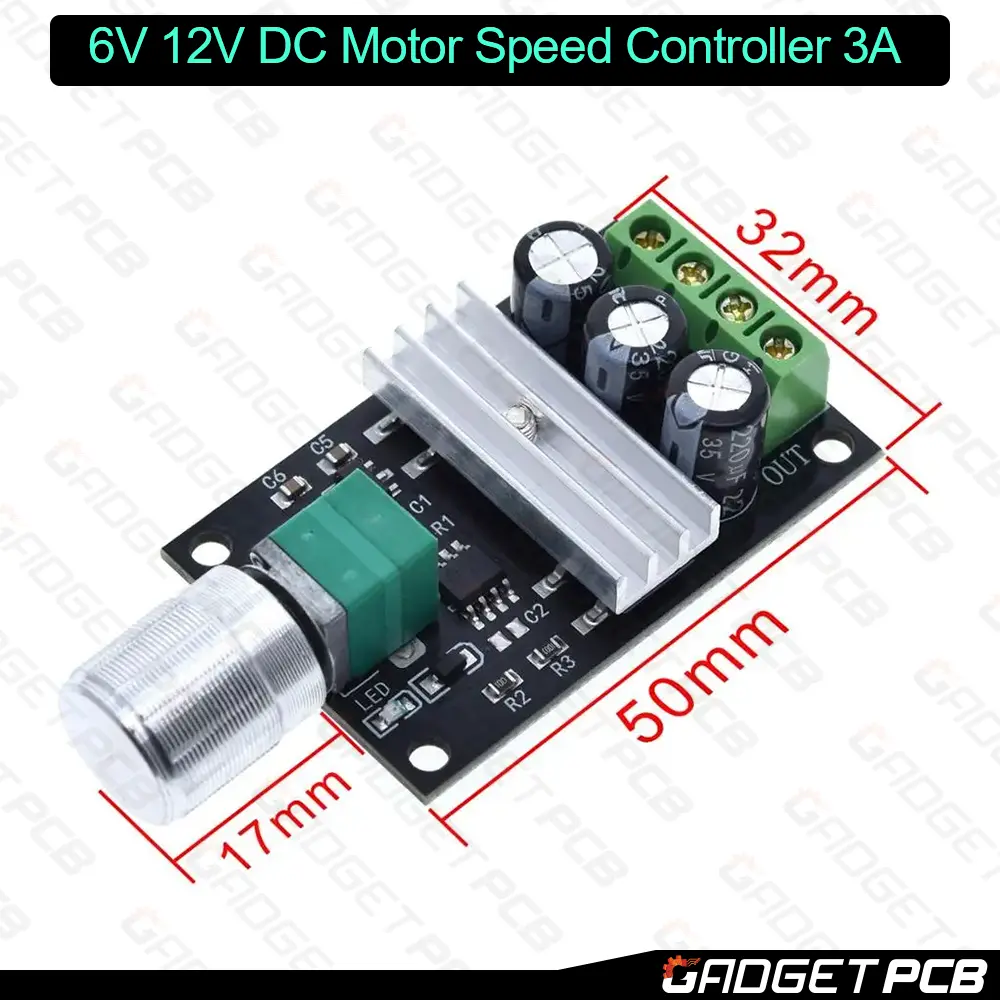

- Size: Approx. 50x32x15mm

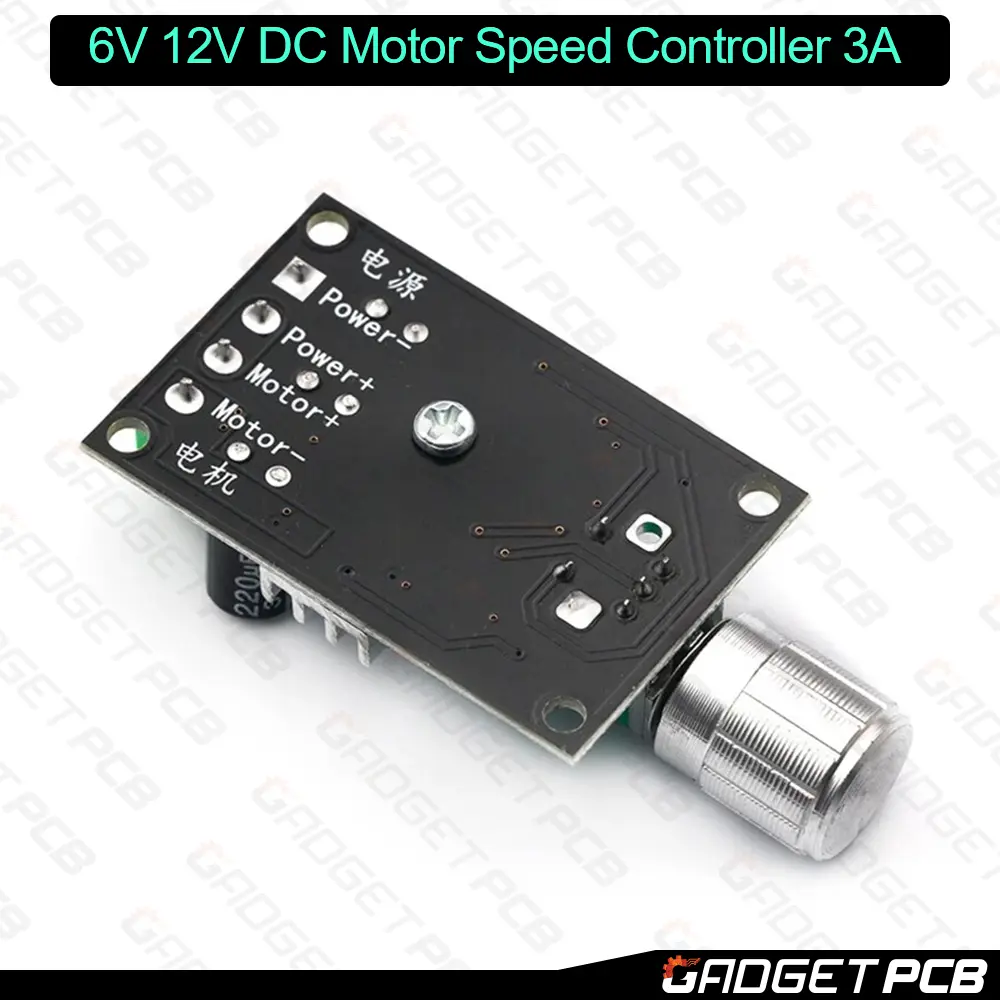

Wire Connection:
- You can now control the speed of the motor through a potentiometer

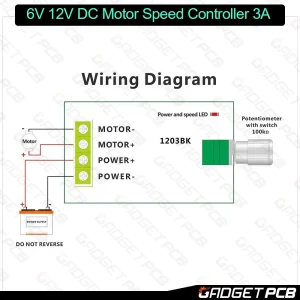

- Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
- Please use DC power supply, do not directly use the household 220v alternating current(ac).
