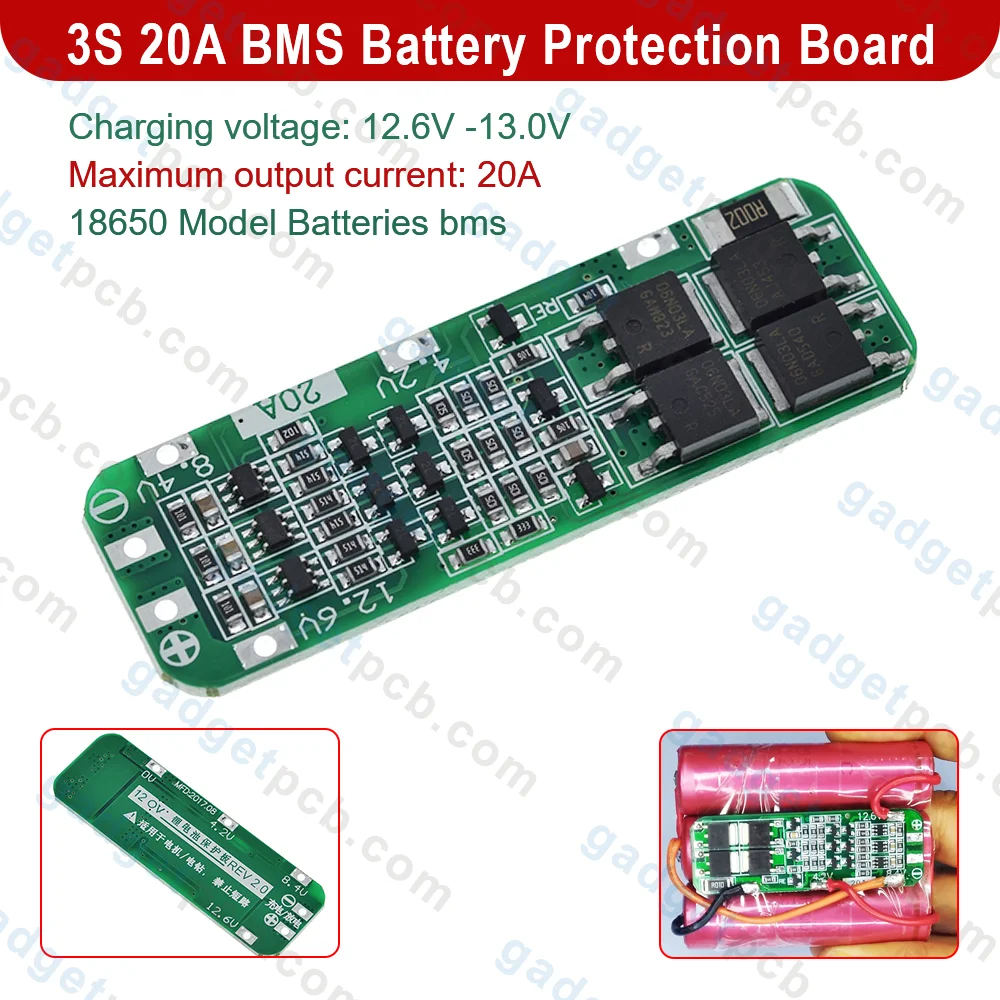

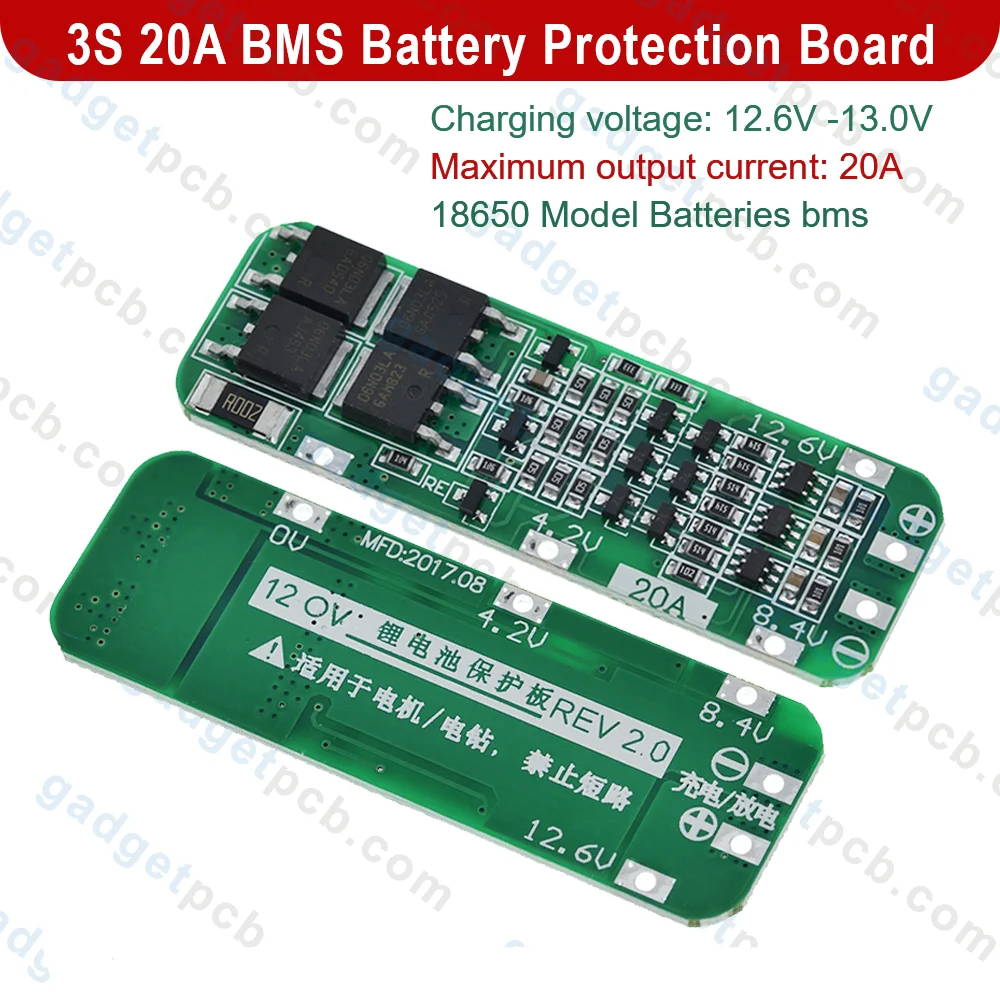

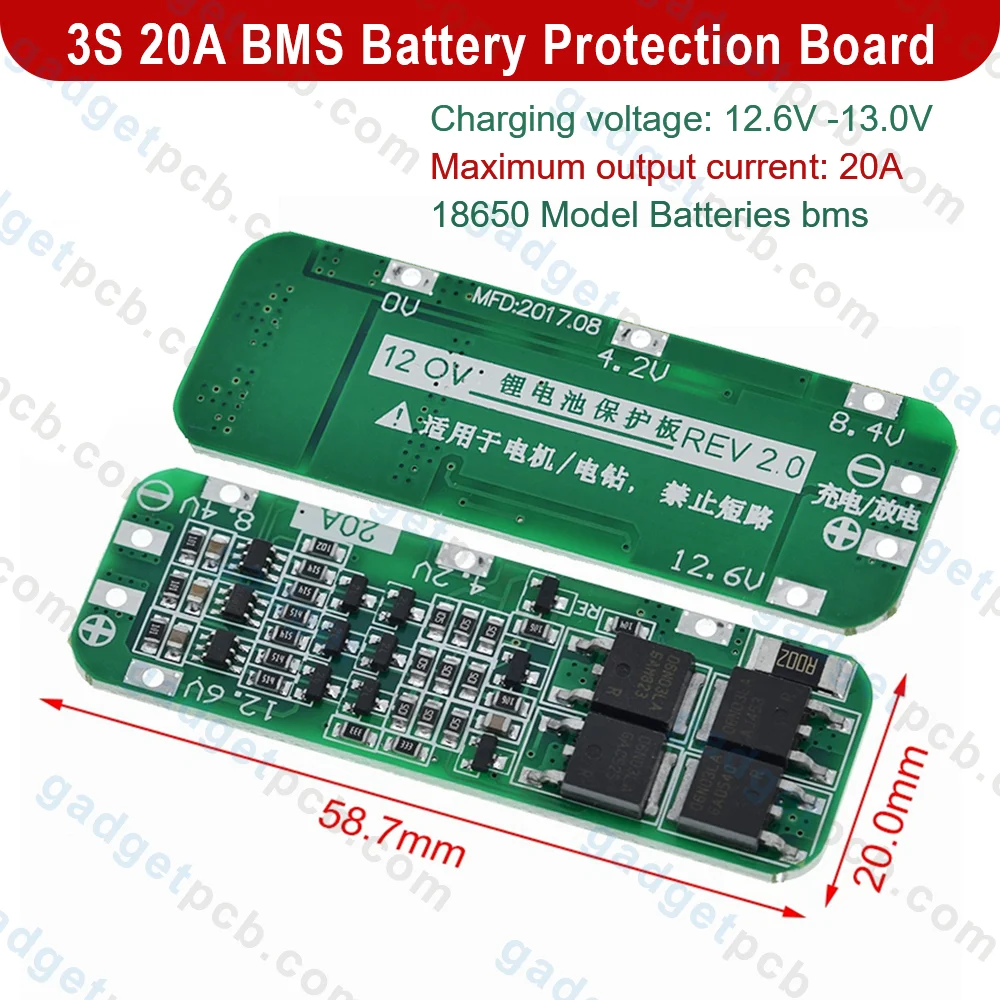

3S 20A BMS Battery Protection Board 3 Cells 20A 12.6V 18650 AA AAA Lipo Li-ion Lithium Battery BMS Chargers Protection Module Electronics Battery Management System
The 3 Series 20A 18650 Lithium Battery Protection Board 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides continuous discharge of 20A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).
The Scope of Nominal voltage of 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
Features:
Specification:
- Charging voltage: 12.6V
- Maximum output current: 20A
- Maximum output power / charging power: 252W
- Module Name: 3S 12.6V Li-ion Lithium Battery 18650 Charger
- Suitable range: For nominal voltage 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Attention:
- Do not mix the good battery and poor battery to use.
- The internal resistance of 3 battery capacity are closer will be better.
- Please buyers know the professional knowledge of this module before buying
Package Included:
