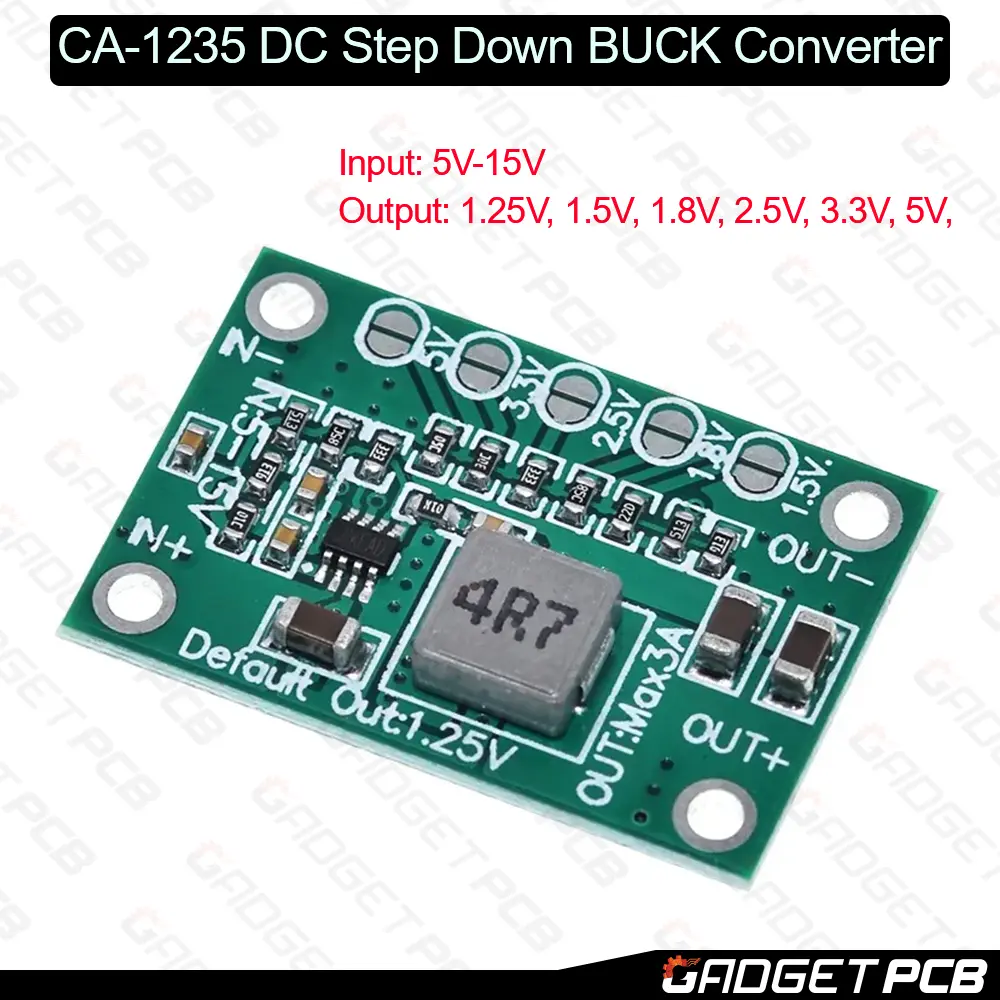

CA-1235 DC DC Step Down Buck Converter MP1495 Chip Output DC 1.25V 1.5V 1.8V 2.5V 3.3V 5V Adjustable Input DC 3A 5V-15V
CA-1235 DC DC Step Down Buck Converter MP1495 Chip Output DC 1.25V 1.5V 1.8V 2.5V 3.3V 5V Adjustable Input DC 3A 5V-15V
CA-1235 DC DC Step Down Buck Converter MP1495 Chip Output DC 1.25V 1.5V 1.8V 2.5V 3.3V 5V Adjustable Input DC 3A 5V-15V
CA-1235 DC DC Step Down Buck Converter Adapters Power Supply Module MP1495 Chip Output DC 1.25V 1.5V 1.8V 2.5V 3.3V 5V Adjustable Input DC 3A 5V-15V
A very effective method of controlling voltage is the MP1495 3A Multi DC to DC Step-Down Converter Module, often known as a buck converter. It can effectively lower input voltages to a steady and lower output voltage with a current rating of 3A. This module is adaptable and perfect for a variety of uses, including offering effective voltage conversion in different do-it-yourself projects and powering electrical gadgets. It is an important part of voltage regulation and power management because to its reliability and small construction.

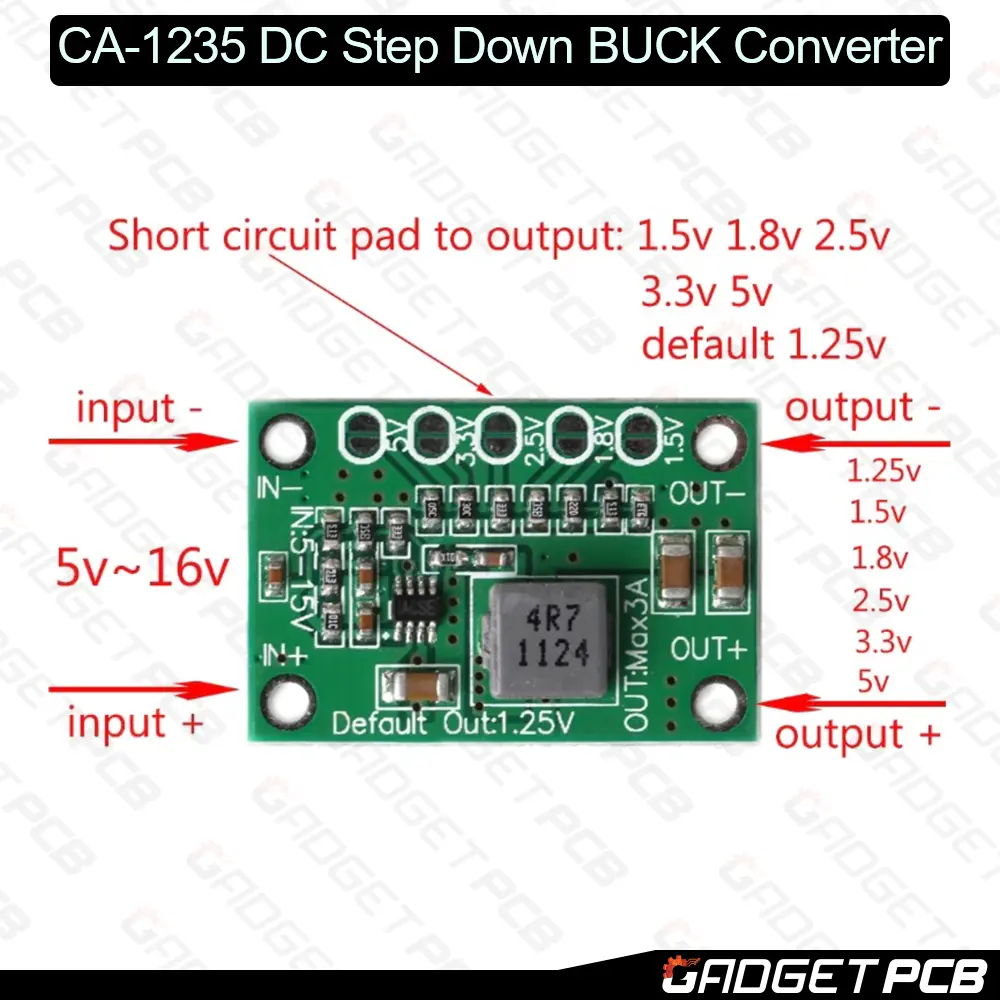

5-15V voltage input, 1.25V 1.5V 1.8V 2.5V 3.3V 5V output, 3A current output, short circuit point to adjust the output voltage (to avoid the phenomenon that the same type of potentiometer can be adjusted on the market), the default output voltage is 1.25V. Suitable for the replacement of various LCD TV small signal power supply repair, three lines to get power supply repair.
Product Features:

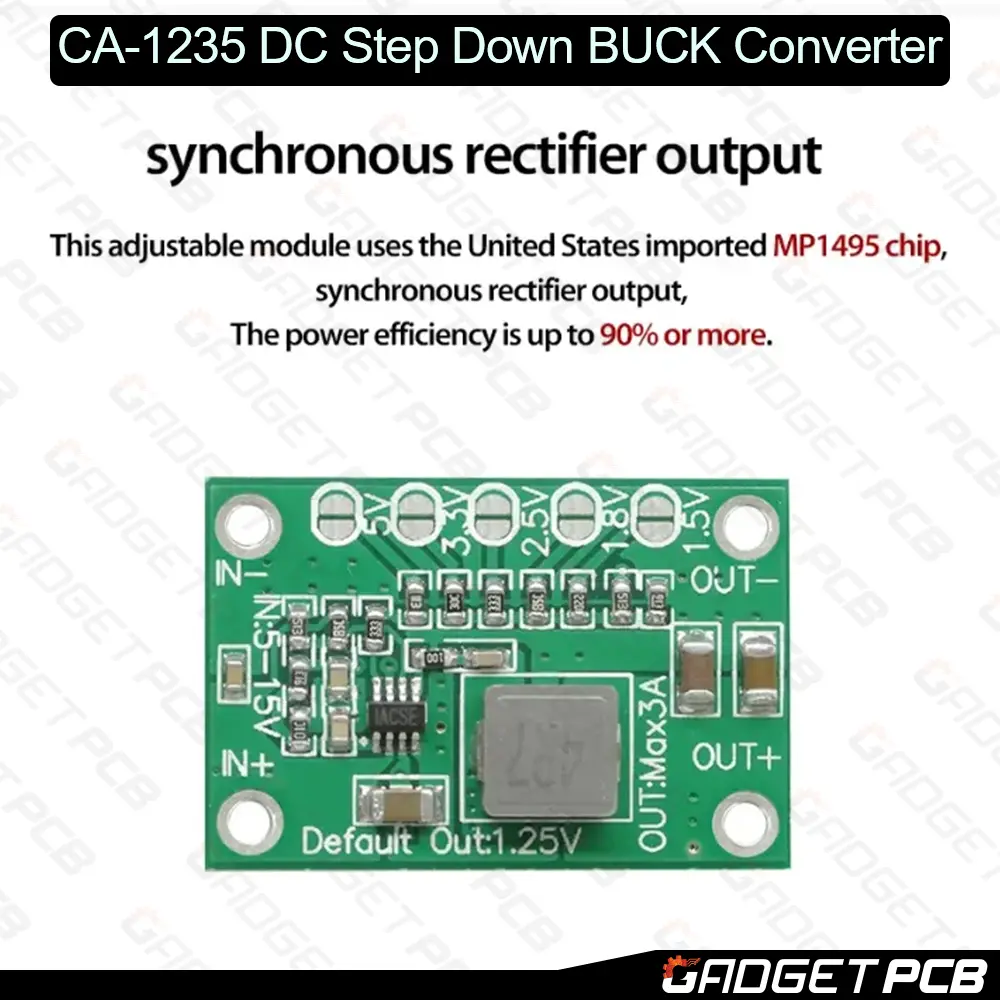

- This adjustable module uses the United States imported MP1495 chip, synchronous rectifier output.
- CA-1235 Power supply module converter 1.25V 1.5 1.8 2.5 3.3 5V output adjustable 3A 5V-15V input
- The adjustable module adopts the MP1495 chip imported from the United States, synchronous rectifier output, energy efficiency of more than 90%, non-linear voltage regulator similar to the market.
- 5-15V 1.25V 1.5V 1.8V 2.5V input voltage, 3.3V output 5V, output current 3A, short circuit to adjust the output voltage the default output voltage is 1.25V.
- Suitable for all kinds of LCD TV, replacement of small signal power supply, three lines for power maintenance.
Specification:
- Item Name: CA-1235 DC DC Step Down Buck Converter
- Chip: MP1495
- Input Voltage: DC 5-15V
- Output Voltage: 1.25V/ 1.5V/ 1.8V/ 2.5V/ 3.3V/ 5V (Standard 1.25V)
- Max Output Current: 3A
- Maximum conversion efficiency: 90%
- Switching frequency: 1.5MHz (highest), typical 1MHz
- Operating temperature: -45 °C to + 85 °C
- Board dimensions: 30 x 20 mm (L x W)
