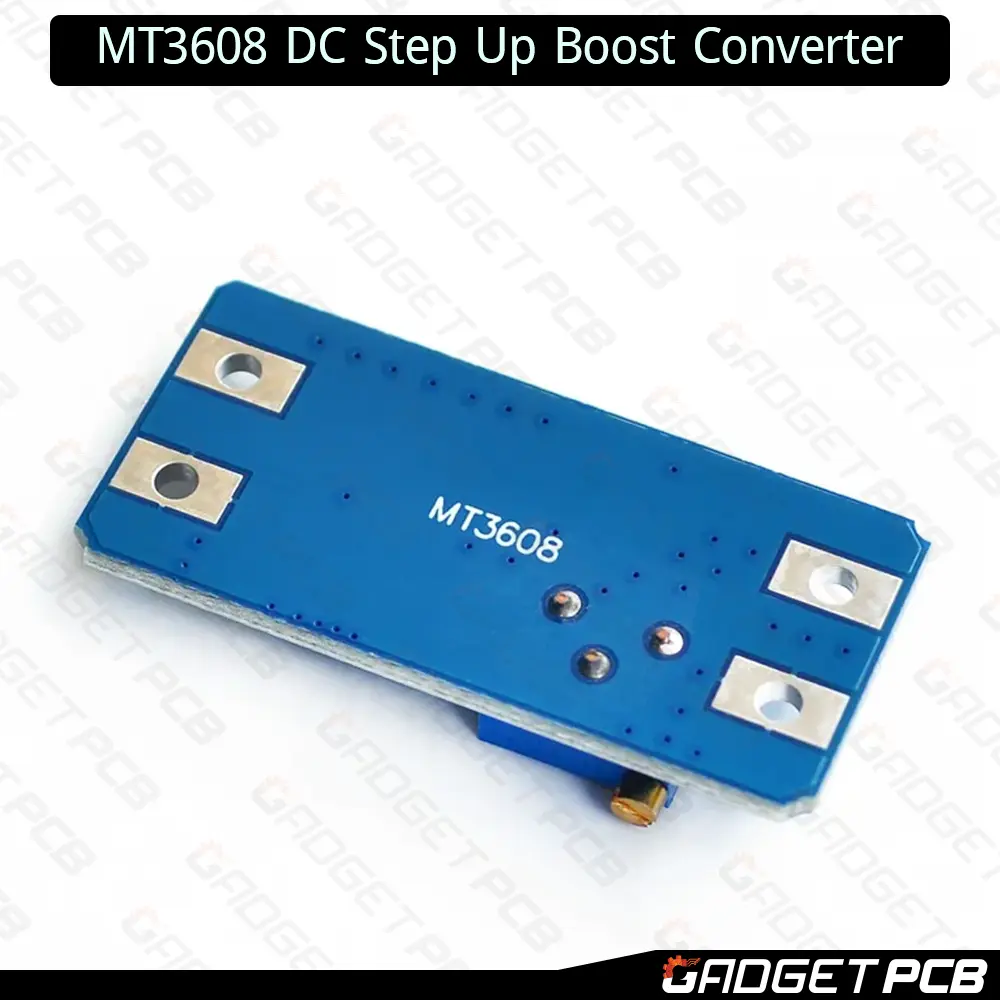

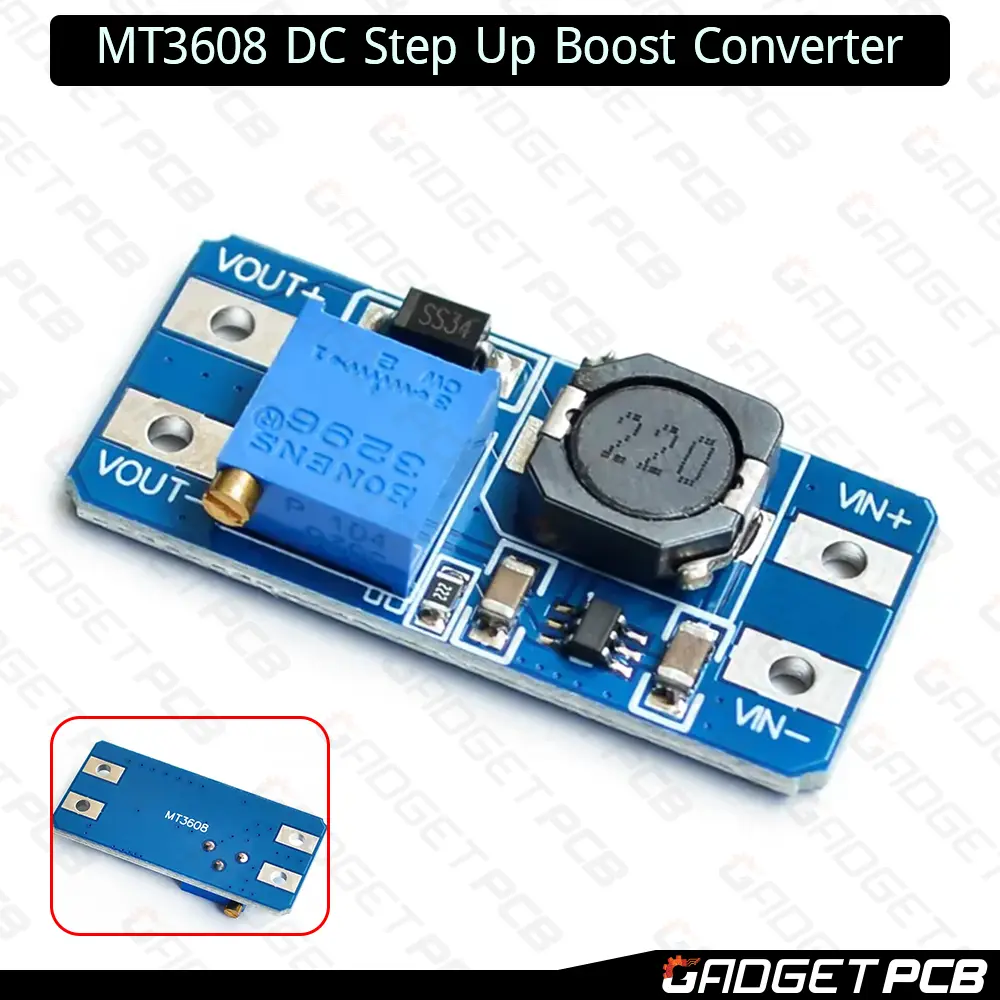

MT3608 DC Step Up Boost Converter MT-3608 DC to DC 2V-24V To 5V-28V 2A Adjustable Voltage Regulator Module Power Supply For Electronics Project DIY
This module features the MT3608 2 Amp step up (boost) converter, which can take input voltages as low as 2V and step up the output to as high as 28V. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. It includes under-voltage lockout, current limiting, and thermal overload protection.
This module has a multi-turn trimpot (potentiometer) that you can use to adjust the output voltage. Since the trimpot has 25 turns of adjustment you can easily adjust the output of the module to exactly the voltage you need.
Product Features:
- This is a great DC to DC step-up converter module for electric equipment, digital products, etc.
- The boost converter can convert 2V~24V DC to maximum 28V DC, output voltage is adjustable with potentiometer.
- The maximum output current can be up to 2A.
- High efficiency, the conversion efficiency can be more than 93%.
- Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.
- High efficiency, the conversion efficiency can be more than 93%.
- The maximum output current can be up to 2A.
Specification:
- Item Name: DC Step Up Boost Converter
- Input voltage: 2-24V
- Output Voltage: 2-28V
- Maximum Output current: 2A
- Maximum Conversion Efficiency: 95%
- Switching Frequency: 1.2MHz

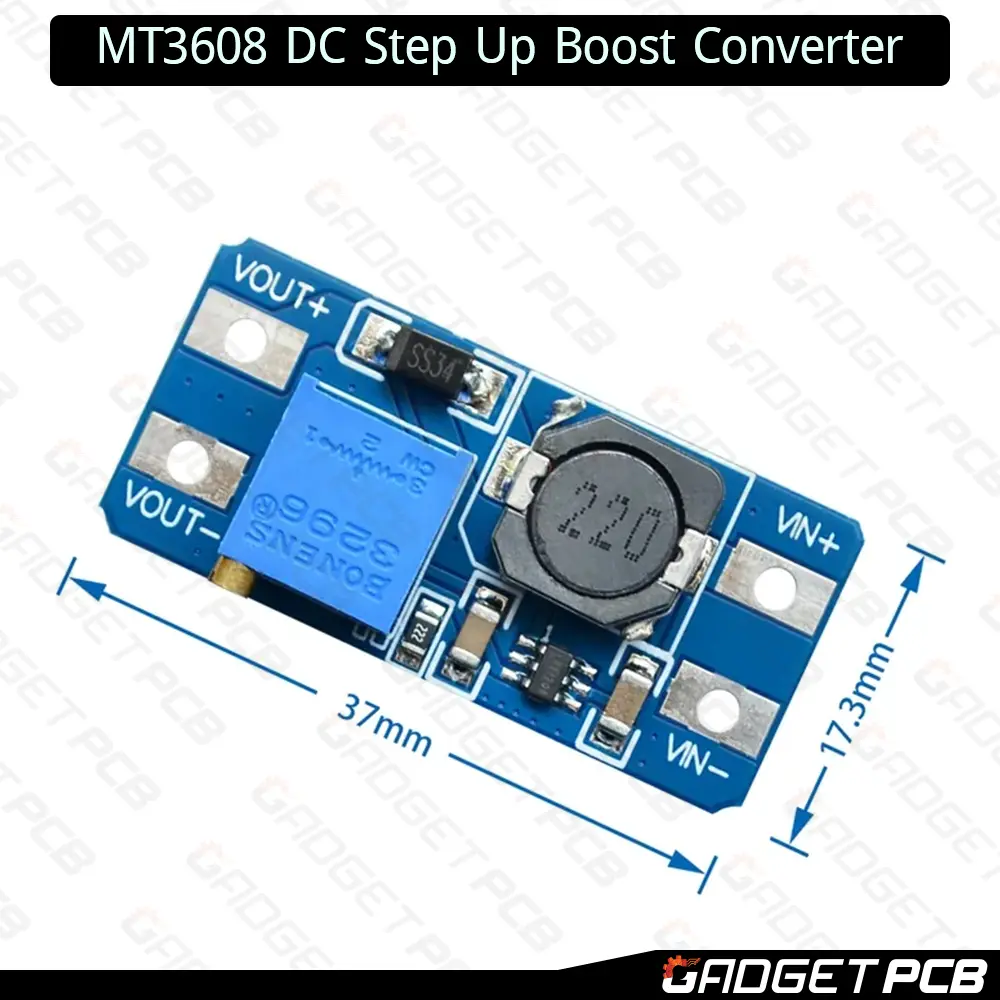

- Module Size: 37×17mm
Voltage Adjustment:
- The module has a single-turn potentiometer for adjustment of the output voltage.
- Turning the pot CW decreases the output voltage while turning it & CCW increases the output voltage.
- The upper limit of the adjustment range will depend on the input voltage and the load.& With a 9V input for instance, at 1A, the upper voltage limit will be approximately 20V.
Note
- The input voltage should not exceed the maximum input voltage
- The peak current and output current is not more than 2A
- When a module, to adjust output voltage can’t always equals the input voltage, please counterclockwise potentiometer more than 20 laps, and then use the module can be normal to adjust the voltage.
