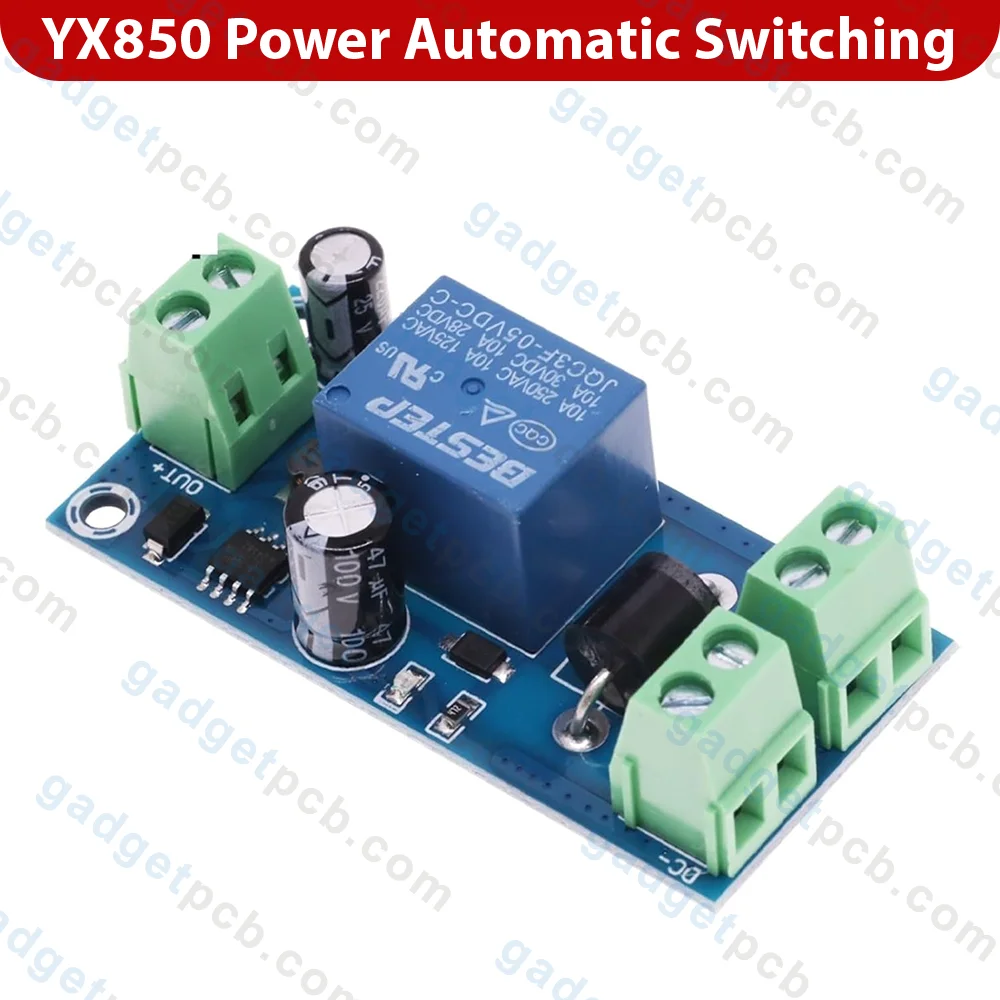

YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS
Original price was: 250৳ .195৳ Current price is: 195৳ .
Description
YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS
YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS
YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS
YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS Uninterrupted Power Supply, This electronic device is a YX850 automatic power failure switching module used for emergency backup systems. Function: It automatically switches from the main DC power source to a backup battery when the primary power fails. Voltage Range: The module is designed to work with power sources and batteries ranging from 5V to 48V DC. Load Capacity: It can support a maximum load current of 10A.Connection: It features screw terminals for easy connection of the power supply, battery, and load.
What is the price of YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS In Bangladesh
The latest price of What is the price of YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS In Bangladesh starts from 195 taka for 1 Piece You can buy the YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS at a better and cheaper price from our website and also you can visit our warehouse
Buy YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS in Bangladesh from online at Gadgetpcb.com
In Bangladesh, you can get original YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 10A, 5V-48V for UPS From Gadgetpcb.com. We have a large collection of latest CNC & 3D Parts to purchase. Order Electronic Modules online at our website Or Visit our warehouse to get your product at lowest price.
Product Features:

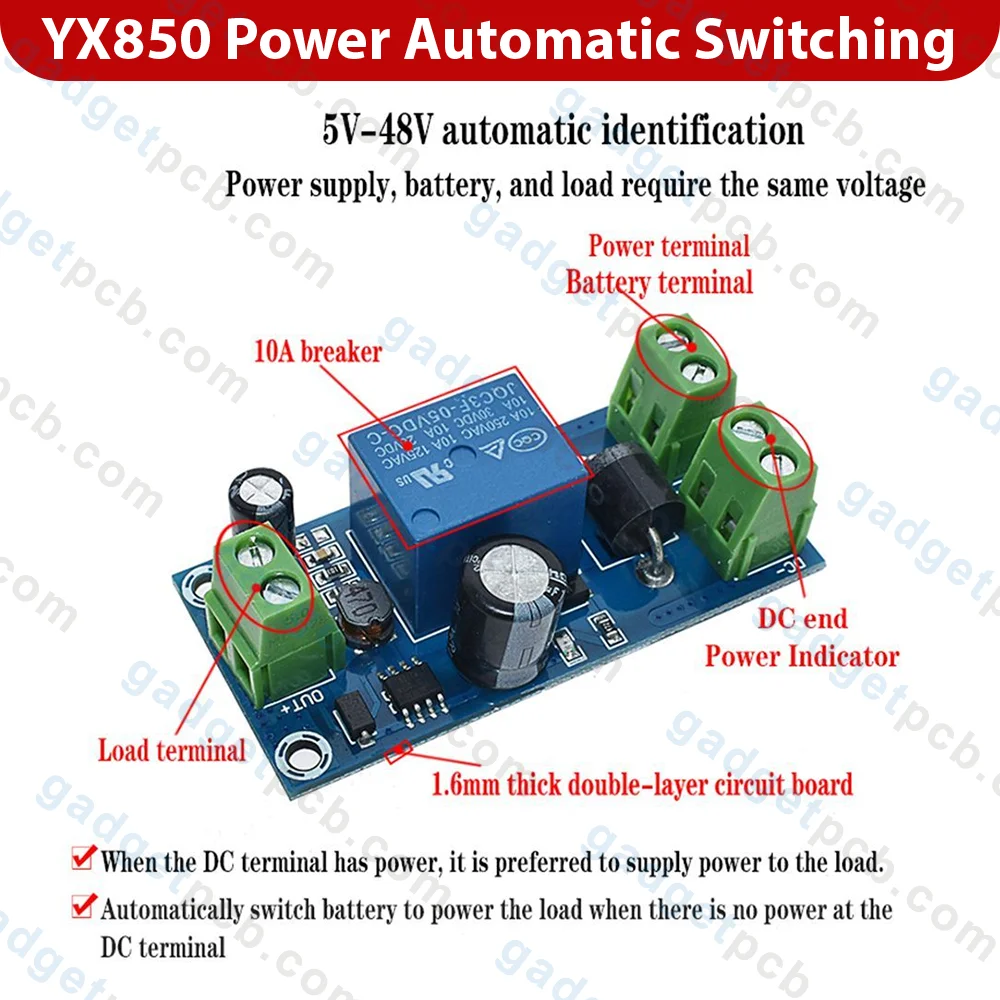

- As a universal type, this is the power-off automatic switch module for 5V-48V battery. Designed with screw terminals for convenient wire connection
- When the DC terminal is not powered, the battery is automatically switched to supply power to the load.
- This controller is used for emergency battery switching; when there is power on main power source terminal, it will connect to main power source as power supply; otherwise, it will automatically switch to battery
- Widely used for controlling power supply of incubator, laptop, network to achieve uninterrupted power supply
- Power off for a few tenths of a second during switching.
- The power supply, battery and load shall have the same voltage.
- When there is power at the DC end, it is preferred to supply power to the load.
- When the DC terminal is powered on, connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)
- When there is no power at the DC end, the automatic battery will supply power to the load.
Product Specification:
- Product Name: power failure automatic switching module
- Product model: YX850
- Scope of application: DC5V-48V
- Product load: 10A

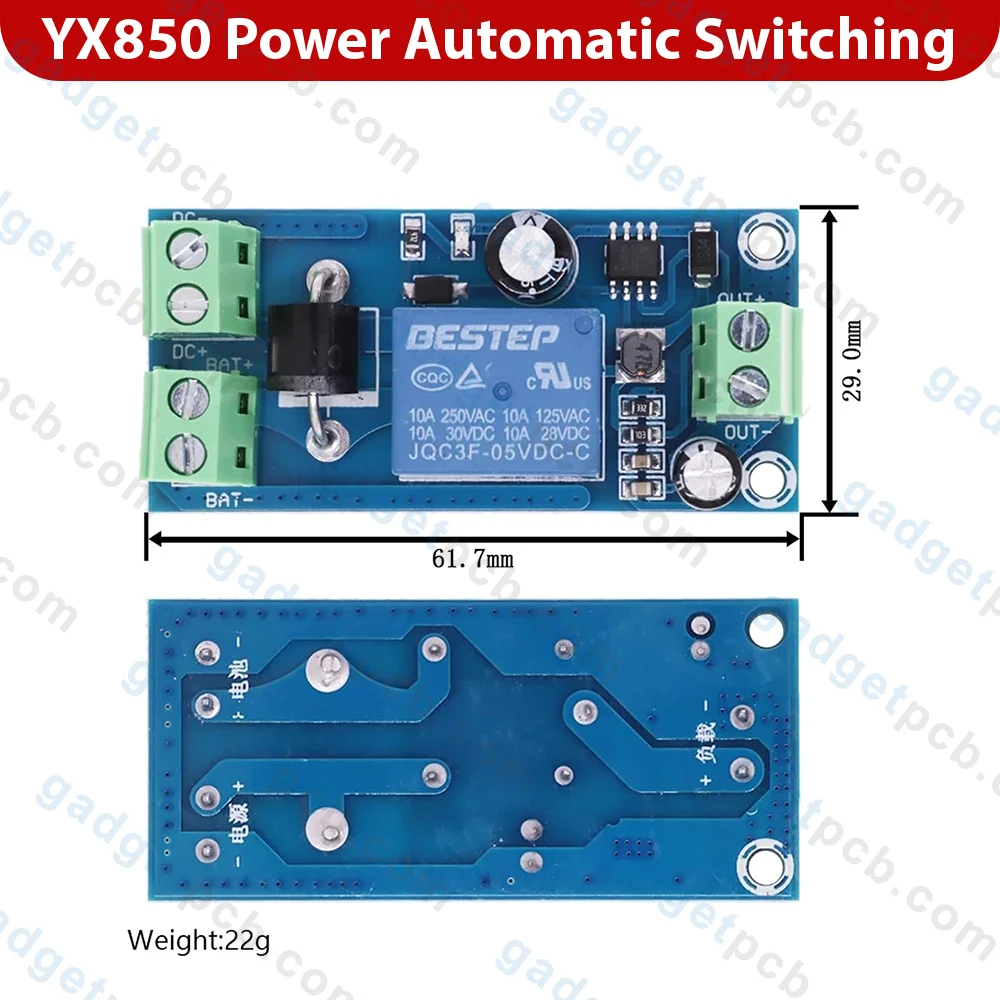

- Product size: 61*30*18mm (length * width * height)
- Mounting hole size: 3mm
- Installation hole spacing: 23mm
- Product weight: about 22g
- Connect the DC terminal to the battery for charging when there is power
- The charging parameters have nothing to do with this module, but depend on your DC terminal, battery and load.
Package Contents:
